QDY Type Cast Double Girder Overhead Crane With Double Beam

Brand Name : YT

Model Number : QDY

Certification : CE ISO

Place of Origin : Xinxiang,Henan Province,China

MOQ : 1set

Price : USD8000-20000 per set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 8000sets per year

Delivery Time : 35-55work days

Packaging Details : The electrical part is packed in a wooden case, and the rest is wrapped in waterproof plastic. Goods are shipped in standard shipping containers or bulk carriers.

Crane type : QDY metallurgy crane

Control method : Cabin

Working temperature : -10~+60 °C

Capacity : from 5tons to 74/20tons

Work Duty : A7

Painting Color : Coustomized

Feature : Two sets of brake for main lift

Keywords : Metallurgy overhead crane

Girder Type : Double Overhead Crane

Power Source : Coustomized

Contact Now

QDY Type Cast Double Girder Overhead Crane With Double Beam

QDY Type Cast Double Girder Overhead Crane Description

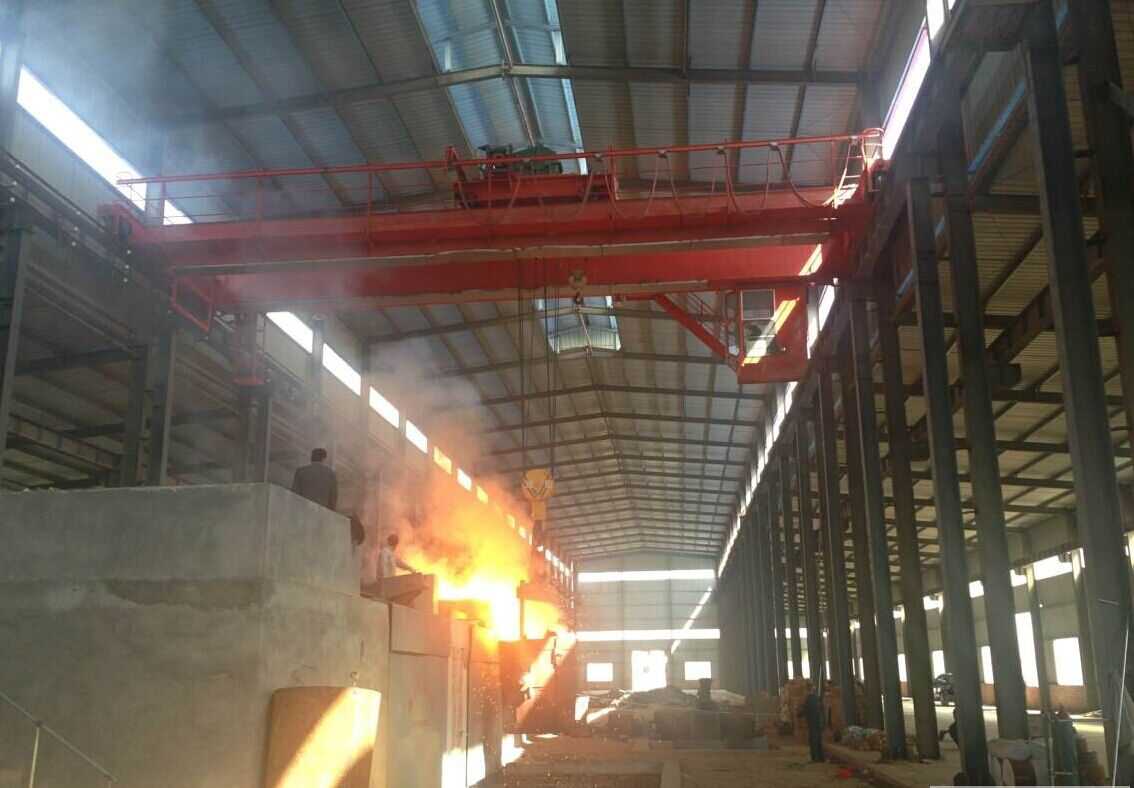

QDY hook bridge type casting crane is mainly used in metallurgy, casting and other places for lifting and transporting molten metal. The crane assembly and test conform to the document No. 375 issued by the General Administration of Quality Supervision, Inspection and Quarantine of the People's Republic of China. Other places for hoisting molten non-metallic materials and hoisting hot solid metals can also be selected for reference.

QDY Type Cast Double Girder Overhead Crane Technical Details Sheet

Lifting weight(t)

5

10

16/3.2

20/5

32/5

50/10

74/20

Span(m)

10.5~31.5

Max Lifting height(m)

16

16

Main hook

16

12

16

12

22

Auxiliary hook

18

14

18

16

24

Working class

A6

Speed

(m/min)

Hoisting

15.5

10.4

Main

10.7

9.8

7.8

7.8

6.1

Auxiliary

14.6

15.5

15.5

10.4

9.7

Traveling of trolley

37.2

43.8

44.6

44.6

42.4

33.8

Traveling of crane

92.7/93.7

92.7/93.7/86.5

76/89

76/89

89/75.3/75.3

75/76.6

67.3

Motor

(type/kw)

Hoisting

15

22

Main hook

37

45

55

75

90

Auxiliary

11

15

15

22

37

Traveling of crane

1.5

2.2

3.7

3.7

7.5

11

15

Traveling of trolley

2*5.5/2*7.5

2*5.5/2*7.5

2*7.5/2*11

2*7.5/2*11

2*11

2*11/2*15

2*22

Steel track

trolley

18kg/m

24kg/m

43kg/m

crane

43kg/m

43kg/m or QU70

QU70

QU80

QU100

QDY Type Cast Double Girder Overhead Crane Features and Advantages


1. Heavy duty, high efficient;
2. Suitable for any environment ( high temperature, explosion proof and so on);
3. Long life span: 30-50 years;
4. Easy for Installation and maintenance;
5. Reasonable structure and strong rigidity;
6. The speed can be frequency inverter speed control;
7. Control method is cabin control or remote control;
8. Depending on lifting cargo, crane can be equipped with hanging beam magnet or magnet chuck or Grab or C hook;
9. Crane is equipped with all moving limit switch, loading limit and other standard safety devices, to promise crane work safe.

QDY Type Cast Double Girder Overhead Crane Sketch

QDY Type Cast Double Girder Overhead Crane With Double Beam

QDY Type Cast Double Girder Overhead Crane With Double Beam
