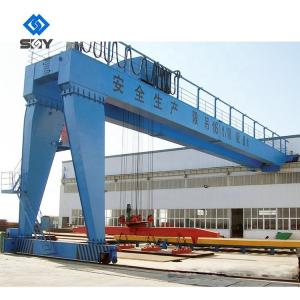

Single Beam 5 Ton Electric Gantry Crane Semi Goliath Crane
Semi Electric Gantry Crane Description
MH type electric hoist single-girder gantry is a small and medium-sized lifting equipment that includes a main beam, under which there are outriggers and a trolley running mechanism, and is used in conjunction with CD/MD electric hoists. MH gantry cranes are also available for both jib and non-luffing gantry cranes. If there is a boom, the crane can load the goods to the edge of the crane through the outriggers, which is very convenient and efficient. This product is a general-purpose crane, which is mostly used for loading and unloading and grabbing materials in open spaces and warehouses.
Semi Electric Gantry Crane Technical Details
| Capacity | T | 3 | 5 | 10 | 16 | 20 |
| Span | m | 12,16,20,24,30 |
| Operational method | | Pendent Line With Press Button /Cabin/ Remote |
| Speed | Lifting | m/min | 8 ,8/0.8 | 8,8/0.8 | 7,7/0.7 | 3.5 | 3.5 |
| | Cross traveling | | 20 | 20 | 20 | 20 | 20 |
| | Long traveling | Ground | | 20 | 20 | 20 | 20 | 20 |
| | | Cabin | | 20, 30,45 | 20, 30,40 | 30,40 | 30,40 | 30,40 |
| Motor | Lifting | Type /kw | ZD41-4/4.5 ZDS1-4/0.4/4.5 | ZD141-4/7.5 ZDS10.8/4.5 | ZD151-4/13 ZDS11.5/4.5 | ZD151-4/13 | ZD152-4/18 |
| | Cross traveling | | ZDY12-4/0.4 | ZDY121-4/0.8 | ZDY21-4/0.82 | ZDY121-4/0.82 | YZD-4/0.84 |
| | Long traveling | Ground | | ZDY21-4/0.82 ZDY21-4/1.52 | YZY22-4/1.52 YZR132M2-6/3.72 | YZR22-4/1.52 | YZR160M1-6/6.32 YZR160M2-6/8.52 | YZR160M1-6/6.32 YZR160M2-6/8.52 |
| | | Cabin | | ZDR100-4/1.52 ZDR112-4/2.12 | YZR112L1-4/2.12 YZR160M1-6/2.12 | YZR112L1-4/2.12 YZR160M2 | YZR160M2-6/8.52 YZR160L2-6/112 | YZR160M2-6/8.52 YZR160L2-6/112 |
| Electric hoist | Model | CD1/MD1 | CD1/MD1 | CD1/MD1 | CD1 | HC |
| Lifting height | m | 6,9,12,18,24,30 |
| Working duty | | A3 |
| Power supply | | 380V 60HZ 3phase AC (According to your demand ) |
Semi Electric Gantry Crane Features
1. Heavy Duty and High Efficient;
2. Suitable for any environment ( High Temperature, Explosion Proof and so on);
3. Long Life Span: 30-50years;
4. Easy for Installation and maintenance;
5. Reasonable structure and strong rigidity;
6. The speed can be frequency inverter speed control;
7. Control method is cabin control or remote control;
8. Depending on lifting cargo, crane can be equipped with hanging beam magnet or magnet chuck or Grab or C hook;
9. Crane is equipped with all moving limit switch, loading limit and other standard safety devices, to promise crane work safe.
Technical Characteristics of Semi Electric Gantry Crane
Three-in-one transmission system, electric non-contact module speed regulation, can realize micro-speed and double-speed close to frequency conversion function, making operation, lifting and electric movement particularly stable. Equipped with overload alarm, deflection crane, secondary protection for hooks, overcurrent protection for missing parts, etc. The operating console (handle) adopts 12V safety voltage to realize multi-functional protection of gantry cranes. The voltage is in the range of 380V+5~-10%, and the electric control can be used for a long time of 2 million times.
Semi Electric Gantry Crane Crane Sketch
