Automated Rail Mounted Gantry Crane Single Girder Trussed Type For Outdoor Lifting
Rail Mounted Single Girder Gantry Crane Brief Introduction
MH single-girder gantry cranes have box type and truss type. The former has good technology and is easy to manufacture, while the latter has light weight and strong wind resistance. According to different purposes, MH gantry cranes also have cantilever and non-cantilever gantry cranes. If there is a boom, the crane can load the goods to the edge of the crane through the outriggers, which is very convenient and efficient.
Rail Mounted Single Girder Gantry Crane Parameter
| Capacity | t | 3 | 5 | 10 | 16 | 20 |
| Span | m | 12,16,20,24,30 |
| Operational Method | | Pendent Line With Press Button /Cabin/ Remote |
| Speed | Lifting | m/min | 8 ,8/0.8 | 8,8/0.8 | 7,7/0.7 | 3.5 | 3.5 |
| Cross Traveling | m/min | 20 | 20 | 20 | 20 | 20 |
| Long Traveling | Ground | m/min | 20 | 20 | 20 | 20 | 20 |
| Cabin | m/min | 20, 30,45 | 20, 30,40 | 30,40 | 30,40 | 30,40 |
| Motor | Lifting | Type /kw | ZD41-4/4.5 ZDS1-4/0.4/4.5 | ZD141-4/7.5 ZDS10.8/4.5 | ZD151-4/13 ZDS11.5/4.5 | ZD151-4/13 | ZD152-4/18 |
| Cross Traveling | Model | ZDY12-4/0.4 | ZDY121-4/0.8 | ZDY21-4/0.82 | ZDY121-4/0.82 | YZD-4/0.84 |
| Long Traveling | Ground | Model | ZDY21-4/0.82 ZDY21-4/1.52 | YZY22-4/1.52 YZR132M2-6/3.72 | YZR22-4/1.52 | YZR160M1-6/6.32 YZR160M2-6/8.52 | YZR160M1-6/6.32 YZR160M2-6/8.52 |
| Cabin | Model | ZDR100-4/1.52 ZDR112-4/2.12 | YZR112L1-4/2.12 YZR160M1-6/2.12 | YZR112L1-4/2.12 YZR160M2 | YZR160M2-6/8.52 YZR160L2-6/112 | YZR160M2-6/8.52 YZR160L2-6/112 |
| Electric Hoist | Model | CD1/MD1 | CD1/MD1 | CD1/MD1 | CD1 | HC |
| Lifting Height | m | 6,9,12,18,24,30 |
| Working Duty | Model | A3 |
| Power Supply | Model | 380V 60HZ 3phase AC (According to your demand ) |
Rail Mounted Single Girder Gantry Crane Main Features
1. Reasonable structure and strong bearing capacity
2. Low noise, soft start and stop
3. Modular design: lifting mechanism; pitching mechanism; trolley traction mechanism; trolley assembly module; crane operating mechanism; steel structure module;
4. Advanced manufacturing technology.
5. Reliability: The motor, reducer, and electrical components are of well-known brands, and the steel materials are from famous-brand steel factories.
6. Intelligence: safety system; anti-sway technology; automatic fault detection; real-time monitoring of oblique travel.
7. Safety device: weight overload protection device; high-quality and long-life polyurethane material buffer; lifting limit switch and travel limit switch; emergency stop system; zero voltage protection; phase protection device.
8. Customized: Design and manufacture according to your requirements.
9. Packing: Standard plywood boxes, wooden pallets or 20ft and 40ft containers are exported by the country station. Or according to your requirement.

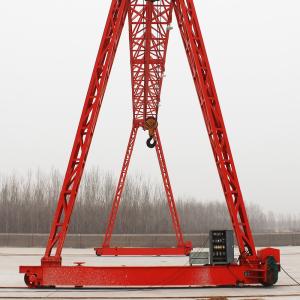

Rail Mounted Single Girder Gantry Crane Images
